Gulfstream
Florida Offshore Fishing
Jupiter Inlet / Gulf Stream EdgeGS-B920
Rig Builder
Five separate rigs — never one combined rig. Hook sizes: 7/0-8/0 single for trolled ballyhoo, 6/0 non-offset circle on kite baits. Leader lengths are ranges; hardware gets no invented millimeter dimensions.

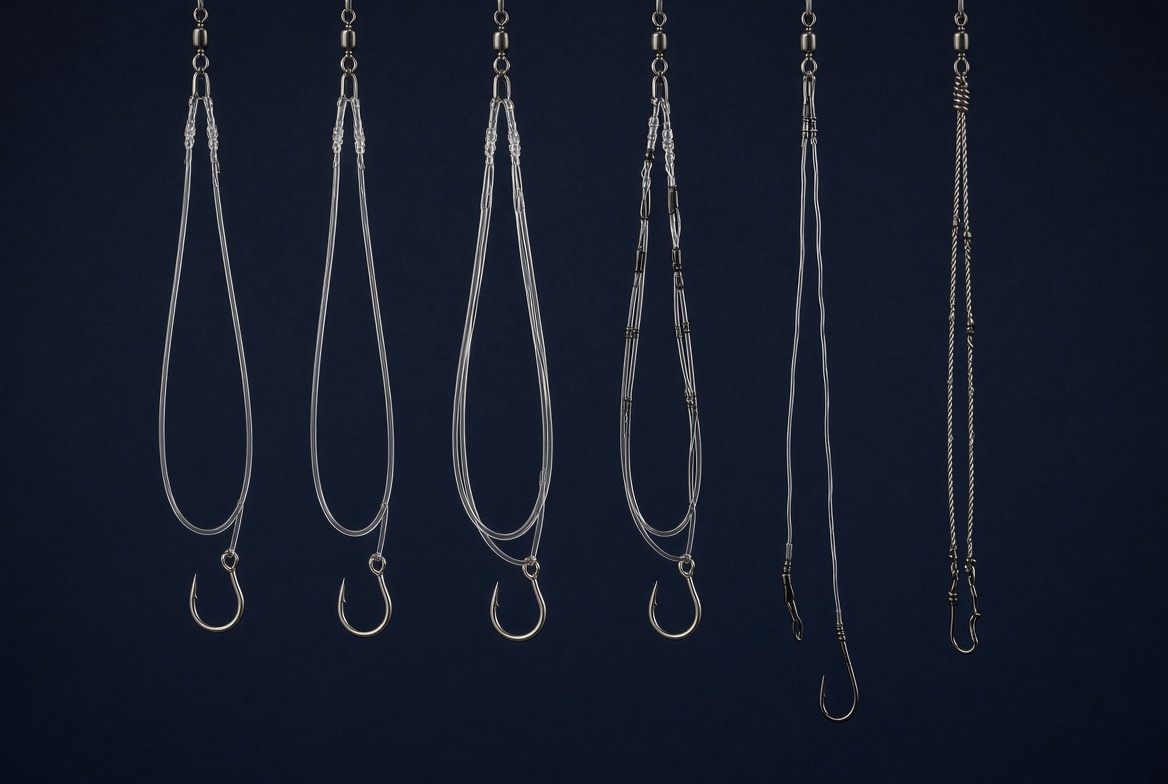

Leader Wall
Pre-tied and ready: fluoro loops, wire traces, kite drop-backs. Build them from the diagrams below.

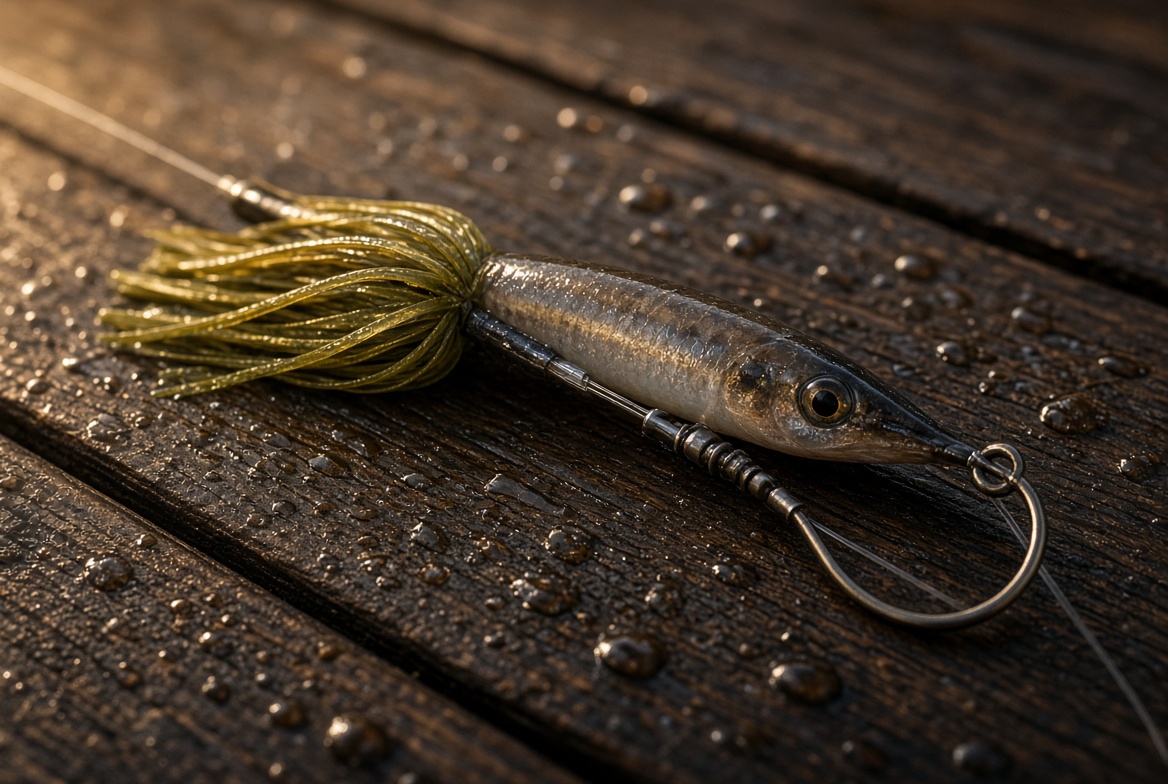

Skirted swimming ballyhoo
captains practiceunverified
The bread-and-butter trolled bait.
◎
Wind-on swivelball bearing
—
Leader50 lb fluorocarbon · 12-15 ft
▭
Crimp or knotto hook
ʖ
Single hook7/0-8/0
❋
Skirt over nosesea witch or skirt
Leader
Material
50 lb fluoro
Length
12-15 ft range
Bait
Bait
Medium ballyhoo
Tow speed
5.5-6.5 kt
Run
Position
Riggers + flat
Depth
Surface
High-speed wire trace
captains practiceunverified
Wahoo teeth cut mono. Wire or lose it.
◎
Wind-on swivelball bearing
—
Shock leader80 lb fluoro · 6-10 ft
▭
Haywire twistto wire
⌇
Wire trace#7 single-strand · 2-4 ft
◆
Lureweighted high-speed head
Leader
Wire
#7 single-strand
Trace
2-4 ft range
Run
Speed
~11.5 kt with loaded wire
Position
Flat line conversion
Planer / deep set
captains practice
Puts a bait under the surface commotion.
◺
Planer#8 on the short line
—
Leader50-80 lb fluoro · 30+ ft behind planer
◎
Snap swivelto lure
◆
Lure or baitspoon / strip
Run
Replaces
Long rigger when loaded
Depth
Planer-set
Kite drop-back
captains practiceunverified
Live bait dangled off a kite clip. Winter sailfish work.
⊐
Kite cliprelease clip
—
Drop-back30 lb mono · ~25 ft range
ʖ
Circle hook6/0 non-offset
❍
Live baitbridle to hook
Season
Window
Roughly Nov-Mar
Wind
Northerly ≥ 10 kt
Sabiki small live bait
captains practice
Fill the well before the run out.
—
Main linelight spin outfit
☰
Sabiki rigsize 6-8, small single hooks
●
Weightheavier in current over 2.8 kt
Use
Target
Small live bait
Note
Weight up in strong current

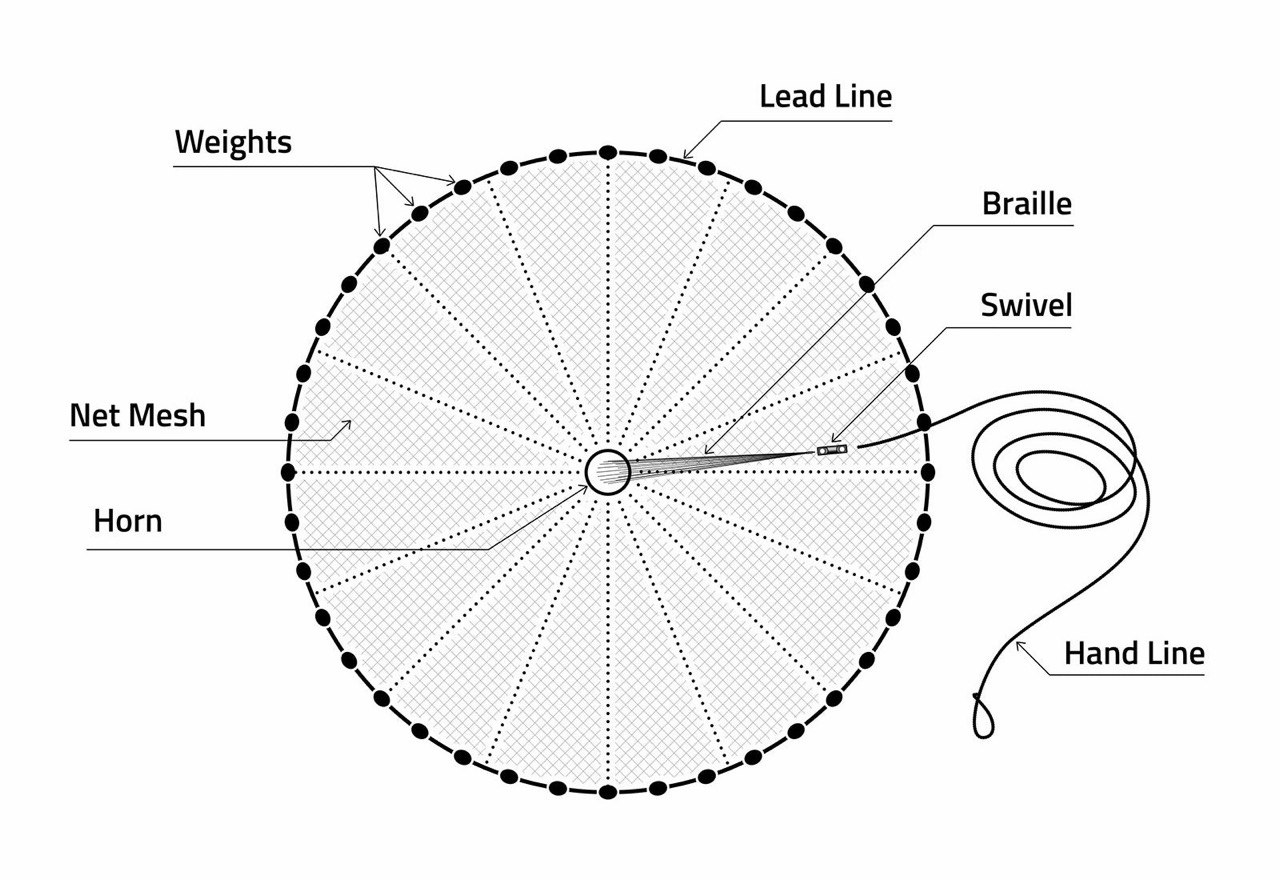

Cast Net Anatomy
Horn, net mesh, braille, lead line with perimeter weights, swivel, hand line — the parts the bait plan talks about. Illustration.
